Lollipop Cotton Swab Paper Stick Making Machine

1.Using PLC and touch screen interface control, with stable speed and overload protection function;

2.Microcomputer automatic speed regulation

3. Equipped with a flexible manual correction device

4.Unwinding adopts magnetic powder tension automatic control to ensure stable paper feeding force

Inquiry Now >


Product Detail

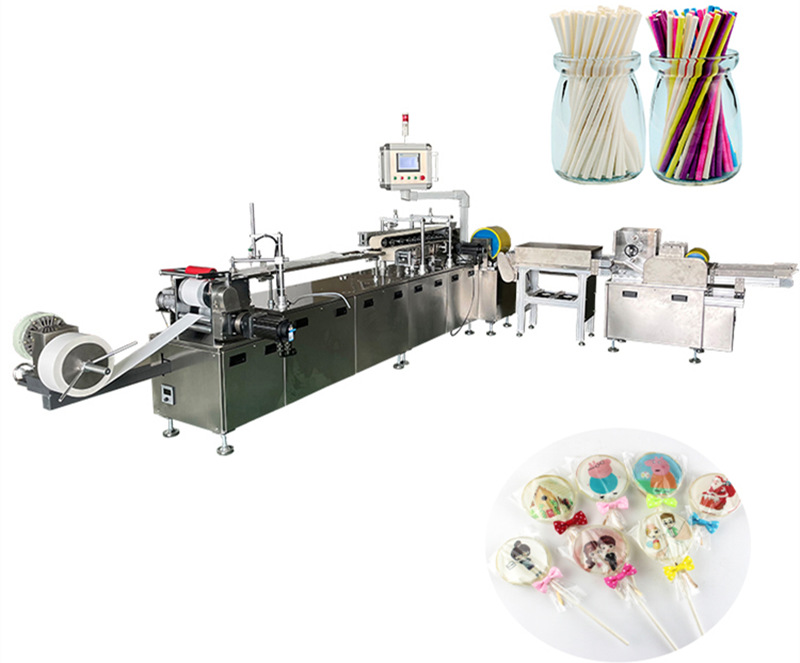

Paper Stick Machine consists of a paper feeding mechanism, a loop twisting mechanism, and a gluing mechanism, forming mechanism and conveyor belt feeding.


Institutional composition:

1.Paper feeding mechanism: The paper roll fixing mode is based on the diameter of the paper roll, which is divided into two types: built-in type and outer frame type. Magnetic powder tension controller is a device for ensuring that the paper has sufficient tension to ensure that the paper rod forms a belt

2. Paper cutting mechanism: the mechanism for cutting the formed paper stick sent by the paper-to-roller automatically according to the set length
Note: paper stick diameter base on the thickness of the paper, so be sure to tell the thickness of the paper before ordering

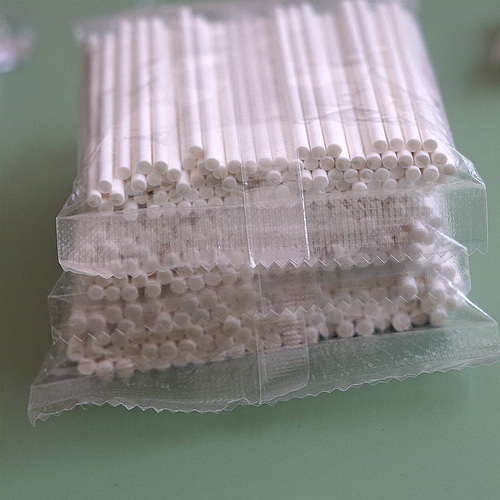

Fine shaft paper stick: φ1.4-2.0mm, use around 30-50 grams
Thick paper stick: φ2.0-3.0mm, use around 50-70 grams

3. Paper stick forming mechanism: The rubber will press the cut shaped paper stick firmly on the setting template and rub the paper stick into a predetermined shape.
Diameter, the formed paper stick is sent out by the receiving conveyor

4.Glue supply mechanism: Glue coating wheel completes the glue application, and the glue amount is adjusted and controlled by the glue application motor

5. Conveyor belt feeding mechanism: The paper stick that has been cut off falls on the conveyor belt installed at the lower
part, and is smoothly delivered to the box And then waiting to be collected

Product Features:
1.Using PLC and touch screen interface control, with stable speed and overload protection function;
2. Microcomputer automatic speed regulation, can accurately control the watering amount required for paper stick roll sticking;
3. Unwinding adopts magnetic powder tension automatic control to ensure stable paper feeding force;
4. Equipped with a flexible manual correction device, which can quickly adjust the deviation of paper feeding.

Technical Parameter

After-sales service

Your worker will have 3-5 days free training in our factory. There will be a Wechat group or WhatsApp group, our technicians who are responsible for after sale service, electrical, hard ware, software, etc, will be in. If one problem happens twice, our technician will go to customer company to solve the problem.

Our company can offer customers with different terms of delivery. Customers can choose shipping way by sea or by air according to urgency priority. Our packaging cases can meet sea and air freight requirement. We’ll prepare all files like PL, the certificate of origin, invoice and other files. There is a worker whose main job is make sure every robot can be delivered to customes port without a hitch in 40 working days.

Q:What is your Installation Services?
Installation Services are available with all new machine purchases.
We will provide the user manual and videos to support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.

Q:What about your Guarantee of quality?
The machine is 1 year warranty, all machine part can be replaced for free within 1year if broken(not including man made).And offer lifetime after sale service

Q:How about the after-sale service?
(1)More than 12 hours after-sale online service one day.
(2) we have engineers available to service machinery overseas.The service charge, include: service fee USD100/day, VISA fee, board round-trip ticket, room and eat in are buyer’s side.

Q: How about the spare parts?
After we deal down all the things , we will offer you a spare parts list for your reference.

Q:If we have very special request for the production line, could you help me to do the design?
Experienced mechanical designer customized-design provided.

Q: If we have samples of new products, can you help to analysis and design the machine?
Yes, Our technical department can help to analysis, design and test the new products you offered.

Q: What can you buy from us?
Paper Straw Production Line,Slitter Machine,Packing Machine: Extrusion Machine,Recycling Machine,Packing Machine,Extrusion Machine.
