Disposable Coffee Tea Paper Cup Making Machine is an automatic machine with multi-working station, which runs a procedure of single pe coated or double PE coated, paper cup fan feeding, cup side welding(by heater or ultrasonic), silicone oil lubrication, bottom punching, bottom preheating, bottom folding, bottom knurling, top curling and cup discharging.
WORKING PROCEDURE EXPLANATION

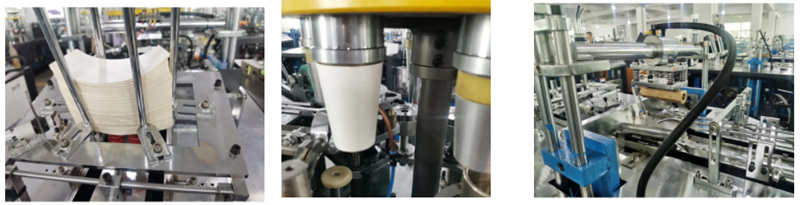

Disposable Coffee Tea Paper Cup Making Machine to produce the cups, a special coated paper with one-side or double side PE lamination is used. Pre-cut paper is feeding automatically to a cone mould, and then the two edges are welded by normal heater or ultrasonic without any glue. And at the same time, the bottom paper roll is die cut and fed to the cup. Then, the cup bottom is preheated and folded with the bottom paper to heating, knurling, curling and final step the paper cup is finished and delivered.
PRODUCT APPLICATION
Disposable Coffee Tea Paper Cup Making Machine is an automatic machine with multi-working station, which runs a procedure of single pe coated or double PE coated, paper cup fan feeding, cup side welding(by heater or ultrasonic), silicone oil lubrication, bottom punching, bottom preheating, bottom folding, bottom knurling, top curling and cup discharging. It has the function of photocell detection, failure alarm, with the advantage of humanism design, safe operation, easy maintenance and durable running. It is an ideal equipment of making disposable paper cups for all types cups (hot and cold drink, coffee, tea, ice cream cup an so on.)

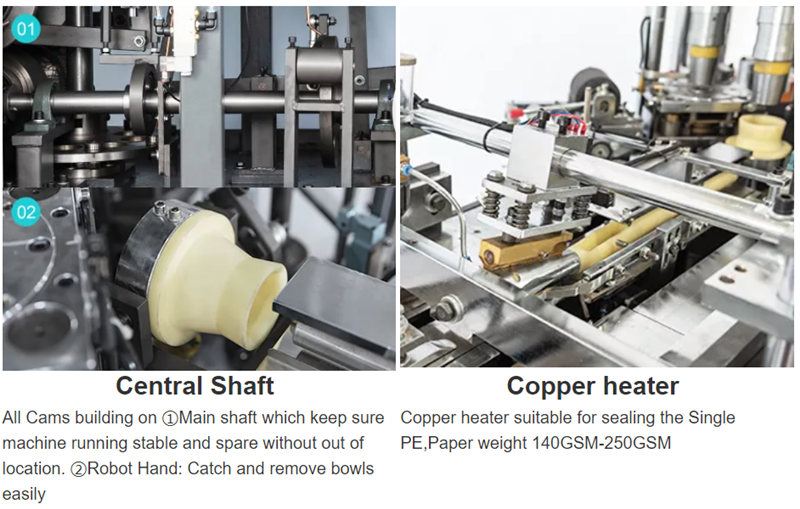

1: Advanced indexing cam open structure,manufacturing precision,ensuring and stability of the machine operation.

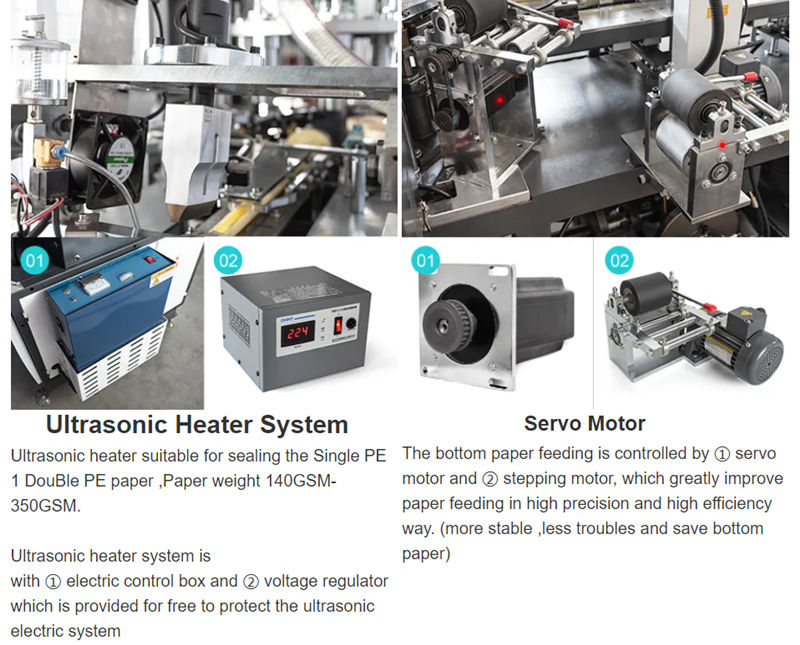

2: Swiss import Leiter flameless hot air system,stable performance,high production efficiency.
3: Using high-strength structural profiles,compact machine structure stable.
4: All use of standardized parts production,versatility,excellent interchange eability ,easy maintenance of equipment .

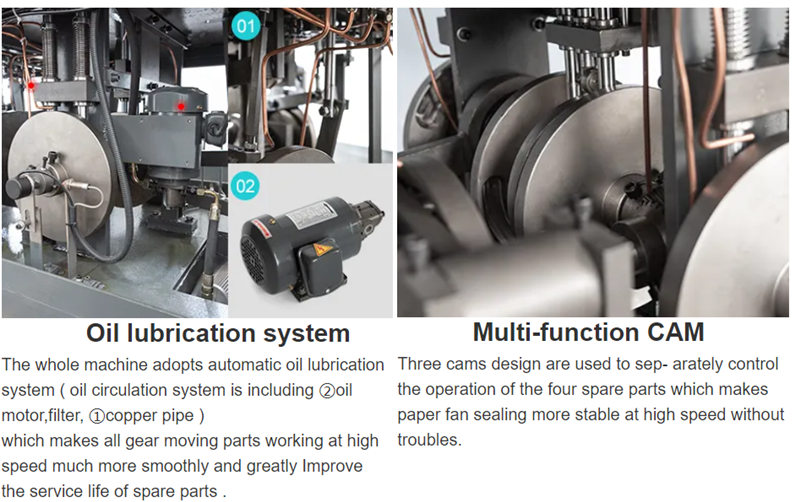

5: Using automatic lubrication system ensures high speed operation of the machine for a long time without a break.
6: Intelligent design,PLC automatic control,servo motor,automatic fault alarm,counting, detection,parking
7: Automatic shutdown isolation.
Your worker will have 3-5 days free training in our factory. There will be a Wechat group or WhatsApp group, our technicians who are responsible for after sale service, electrical, hard ware, software, etc, will be in. If one problem happens twice, our technician will go to customer company to solve the problem.
Our company can offer customers with different terms of delivery. Customers can choose shipping way by sea or by air according to urgency priority. Our packaging cases can meet sea and air freight requirement. We’ll prepare all files like PL, the certificate of origin, invoice and other files. There is a worker whose main job is make sure every robot can be delivered to customes port without a hitch in 40 working days.
Q:What is your Installation Services?
Installation Services are available with all new machine purchases.
We will provide the user manual and videos to support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Q:What about your Guarantee of quality?
The machine is 1 year warranty, all machine part can be replaced for free within 1year if broken(not including man made).And offer lifetime after sale service
Q:How about the after-sale service?
(1)More than 12 hours after-sale online service one day.
(2) we have engineers available to service machinery overseas.The service charge, include: service fee USD100/day, VISA fee, board round-trip ticket, room and eat in are buyer’s side.
Q: How about the spare parts?
After we deal down all the things , we will offer you a spare parts list for your reference.
Q:If we have very special request for the production line, could you help me to do the design?
Experienced mechanical designer customized-design provided.
Q: If we have samples of new products, can you help to analysis and design the machine?
Yes, Our technical department can help to analysis, design and test the new products you offered.
Q: What can you buy from us?
Paper Straw Production Line,Slitter Machine,Packing Machine: Extrusion Machine,Recycling Machine,Packing Machine,Extrusion Machine.
