This is the high speed square and V bottom automatic Paper Bag Making Machine .It uses paper roll in blank or printed as raw material, consists of automatic center-forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. This machine really realized that full automation production can effectively save the labor cost.

Inquiry Now > admin@rbt-automation.com

VIDEO

video video
Product Detail Technical parameters After-sales service

Product Detail



  This is the high speed square and V bottom automatic paper bag making machine .It uses paper roll in blank or printed as raw material, consists of automatic center-forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. This machine really realized that full automation production can effectively save the labor cost.

This Automatic Paper Bag Making Machine is a kind of paper bag processing equipment for rolling primary color or printing rolling paper such as kraft paper,oily paper and so on. It can finish spraying and laminating film ,gluing on the top,forming the tube,cutting off,gluing on the bottom,forming the bag ,counting and collecting the paper bag.
The machine structure is reasonable ,compact,easy to adjust ,by high-speed central processor control,full servo drive,touch screen display,servo motor control bag making speed.
It is the ideal equipment for producing various kinds of paper bags, food bags,food bags, fast food bags, bread bags, medical bags,dried fruit bags, shopping bags,and other environment-friendly paper bags.
Product Features:

1. The human-machine touch screen interface, the work condition can be shown in real- time.

2. Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.
3. Material loading and unloading adopts pneumatic or hydraulic lifting structure.
4. Automatic constant tension control system. The tension will be just right from beginning to end.
5. Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving,long life.
6.Thumb buttons, appressed bottom cutting device, bag type have many choices.
​​​​​​​7. Don’t stop machine adjust double bottom structure, the adjustment will become more intuitive, more simple, more time saving.
8. Glue roller air defense coating control,avoid gluing on besmear brushs hub surface directly, reduce unnecessary trouble.
9. Accurate color tracking system, automatic alarm prompt when color is wrong.
10. Adjustable forming mould structure (side sealing is above the forming mould).
11. Handle production unit, paper handle cutting and gluing are all controlled by servo motor.

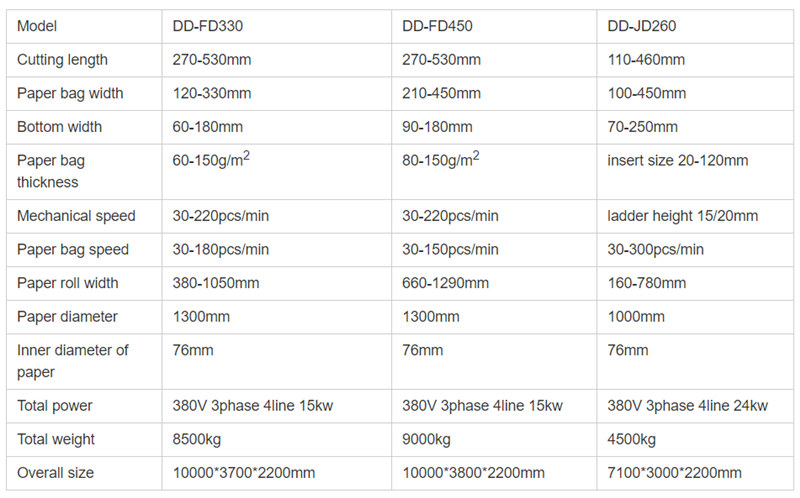

Technical Parameter



After-sales service

Your worker will have 3-5 days free training in our factory. There will be a Wechat group or WhatsApp group, our technicians who are responsible for after sale service, electrical, hard ware, software, etc, will be in. If one problem happens twice, our technician will go to customer company to solve the problem.

Our company can offer customers with different terms of delivery. Customers can choose shipping way by sea or by air according to urgency priority. Our packaging cases can meet sea and air freight requirement. We’ll prepare all files like PL, the certificate of origin, invoice and other files. There is a worker whose main job is make sure every robot can be delivered to customes port without a hitch in 40 working days.

Q:What is your Installation Services?
Installation Services are available with all new machine purchases.
We will provide the user manual and videos to support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.

Q:What about your Guarantee of quality?
The machine is 1 year warranty, all machine part can be replaced for free within 1year if broken(not including man made).And offer lifetime after sale service

Q:How about the after-sale service?
(1)More than 12 hours after-sale online service one day.
(2) we have engineers available to service machinery overseas.The service charge, include: service fee USD100/day, VISA fee, board round-trip ticket, room and eat in are buyer’s side.

Q: How about the spare parts?
After we deal down all the things , we will offer you a spare parts list for your reference.

Q:If we have very special request for the production line, could you help me to do the design?
Experienced mechanical designer customized-design provided.

Q: If we have samples of new products, can you help to analysis and design the machine?
Yes, Our technical department can help to analysis, design and test the new products you offered.

Q: What can you buy from us?
Paper Straw Production Line,Slitter Machine,Packing Machine: Extrusion Machine,Recycling Machine,Packing Machine,Extrusion Machine.
